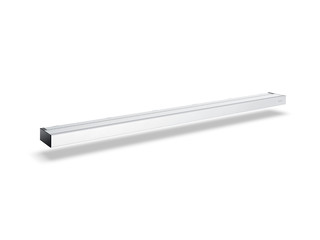

Slimdrive SL NT-FR * Automatic linear sliding door system for escape and rescue routes with low overall height and clear design line
- Escape route function with redundant drive design
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with high access frequency
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths from 700 to 3000 mm possible
- Door leaf weights of up to 125 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, all-glass systems (GGS), integrated all-glass systems (IGG), and on-site frame and wooden leaves

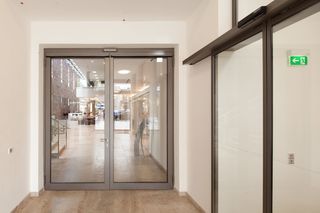

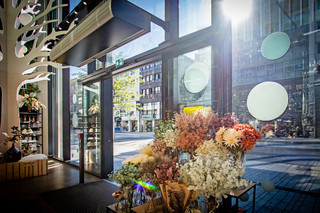

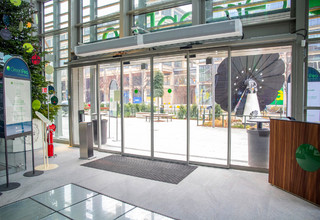

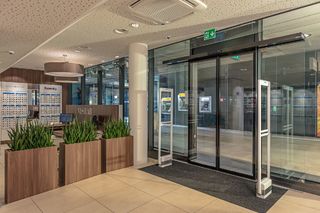

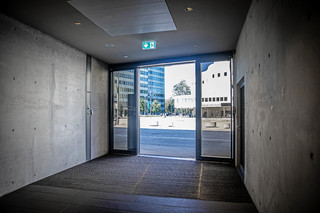

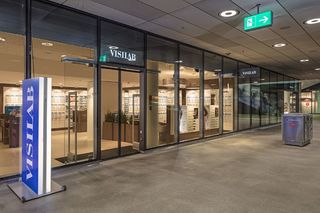

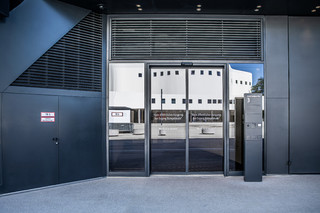

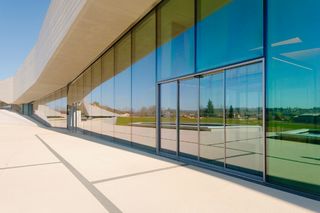

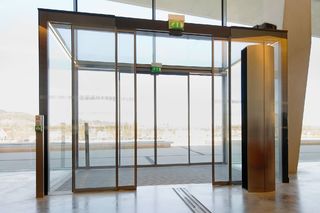

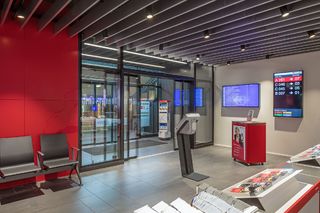

Installation situations in reference objects and videos

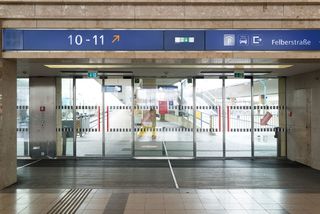

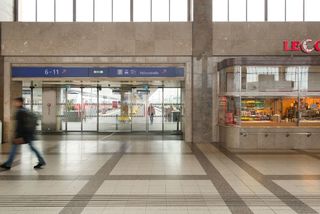

Automatic sliding door drive Slimdrive SL-FR in Vienna West Station
The Slimdrive SL-FR allows visitors barrier-free access and comfortable entrance to the Westbahnhof in Vienna © Sigrid Rauchdobler / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
Technical data
| Slimdrive SL NT-FR | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| Height | 70 mm |
| Depth | 190 mm |
| Leaf weight (max.) 1-leaf | 125 kg |
| Leaf weight (max.) 2-leaf | 125 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 900 mm - 3000 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |

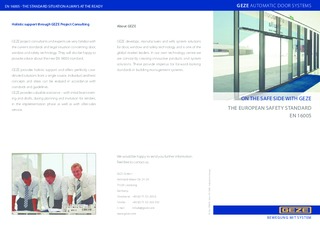

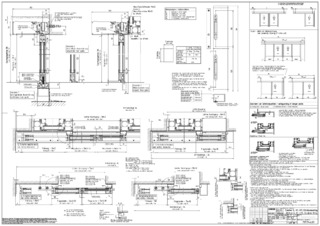

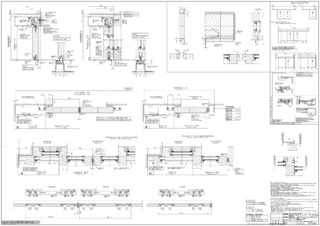

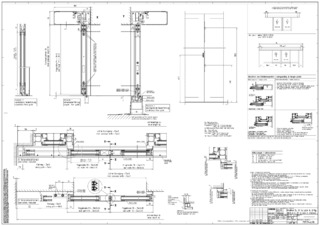

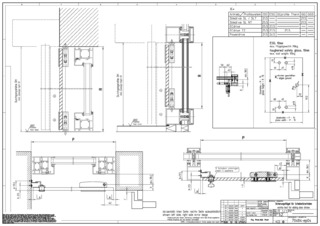

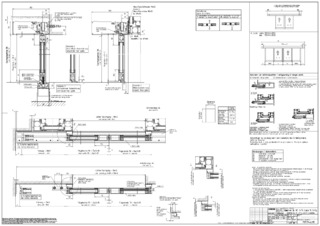

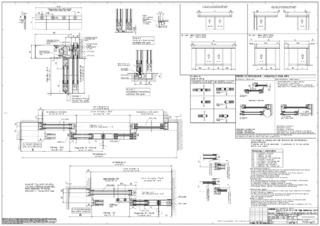

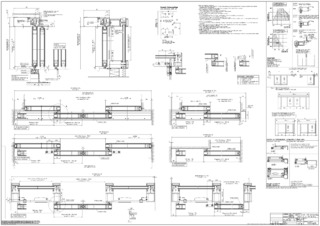

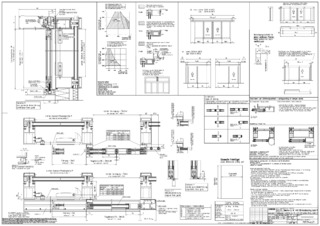

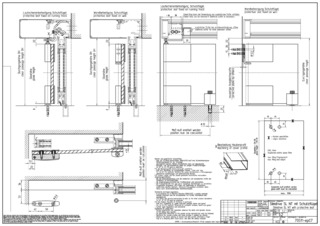

Downloads
